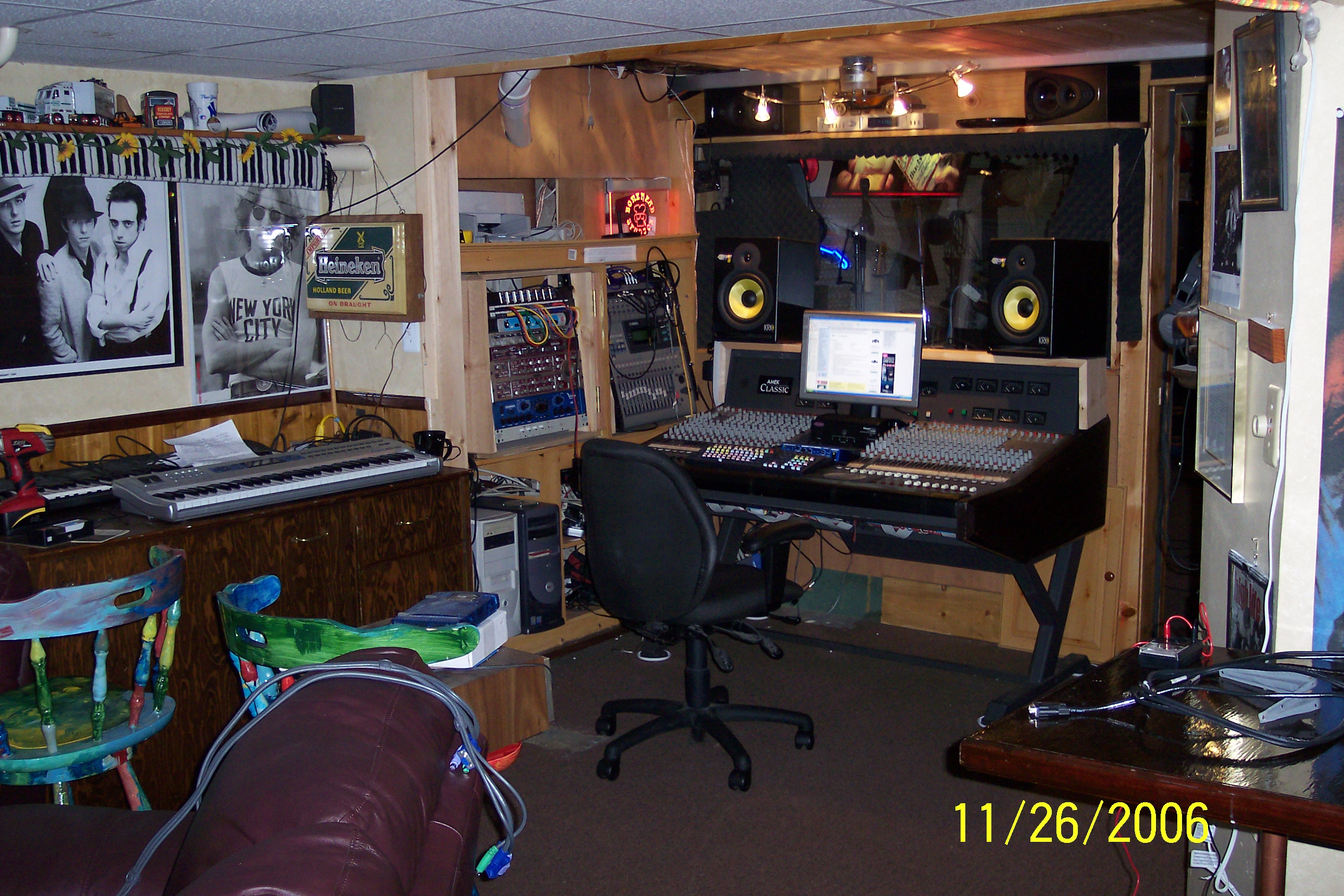

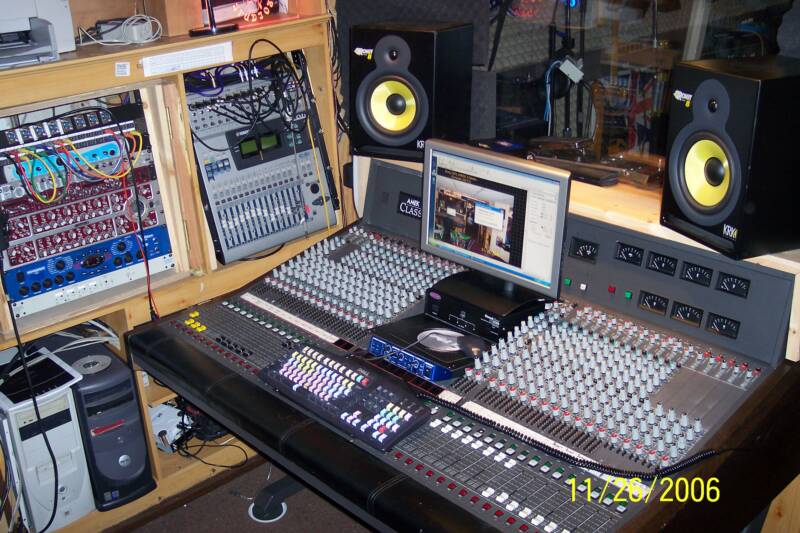

Early 90's AMEK Classic Console (3212)
All components have been sold except cabling
(this page is for reference only)

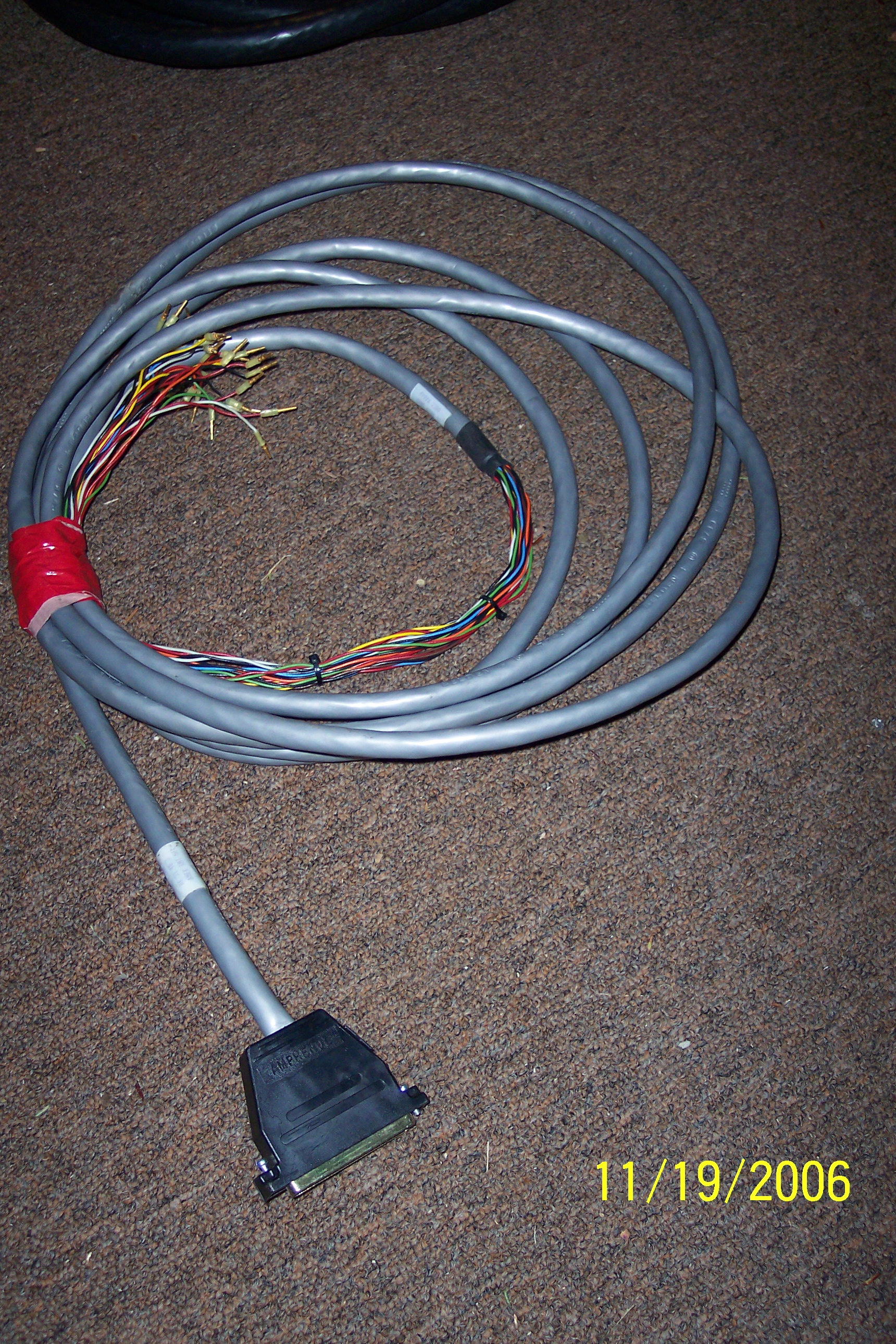

Qty 6:
Example of ID Tag:
PPPA 2302
CONS CONN D3
RK S1 TB 3
AMEK RMT CTL
PPPPA 2302
26 Conductor
individually pinned
QTY 1

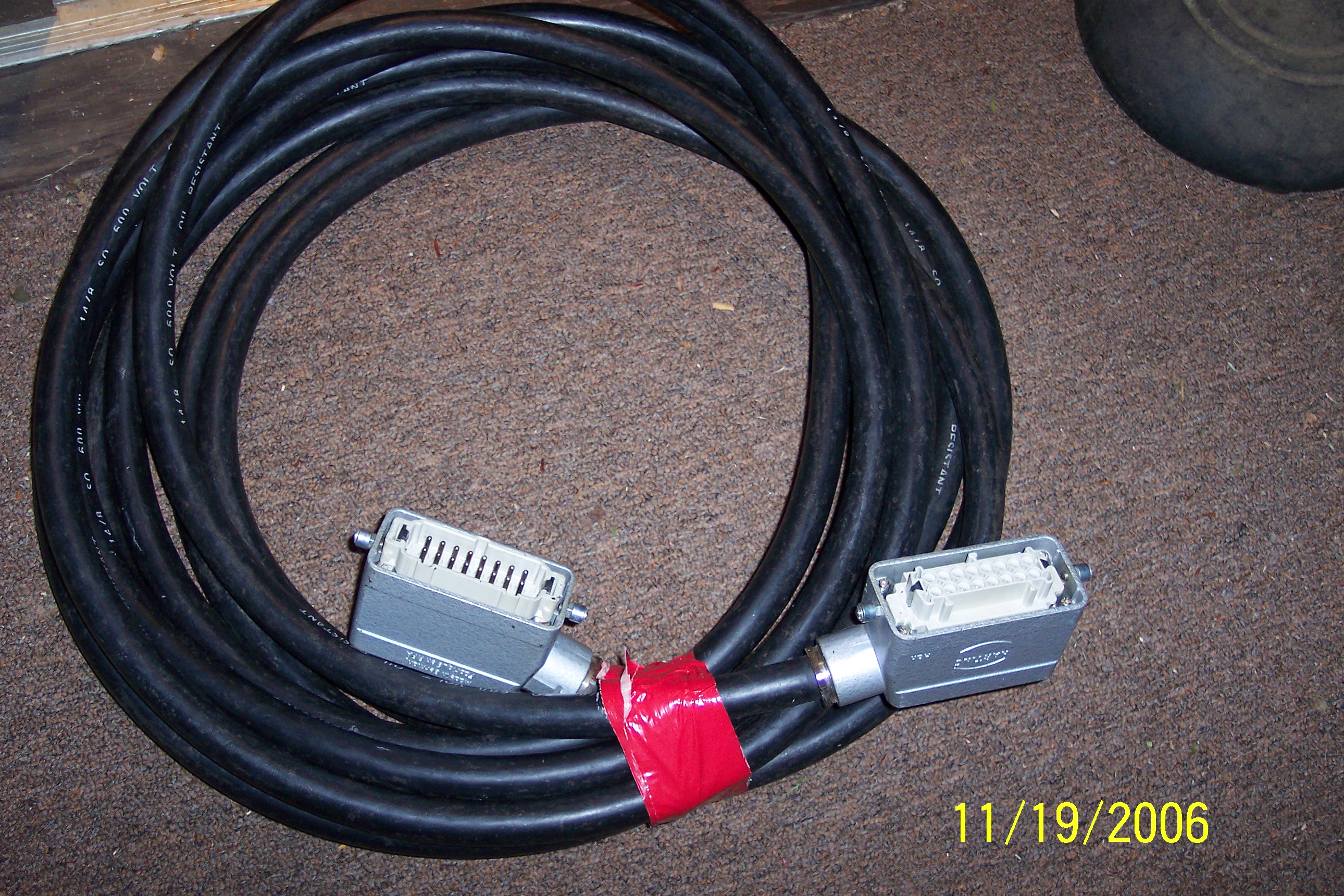

16 conductor
PSU Main cable
harness complete and terminate with 2 Harding style
90 degree connections

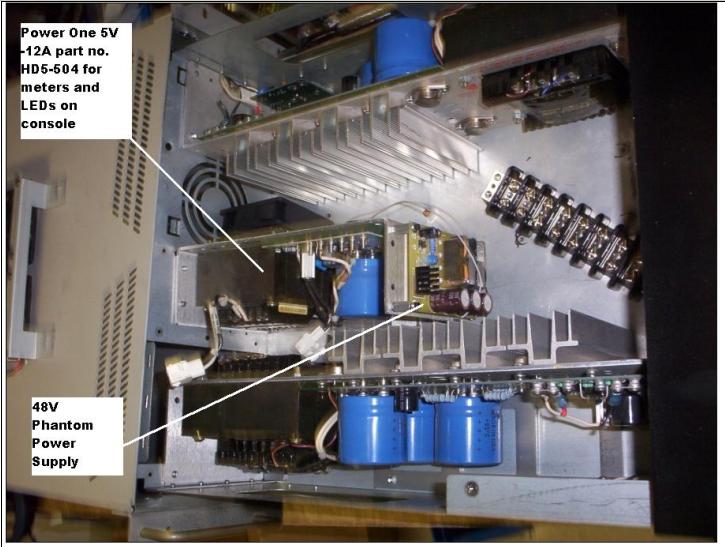

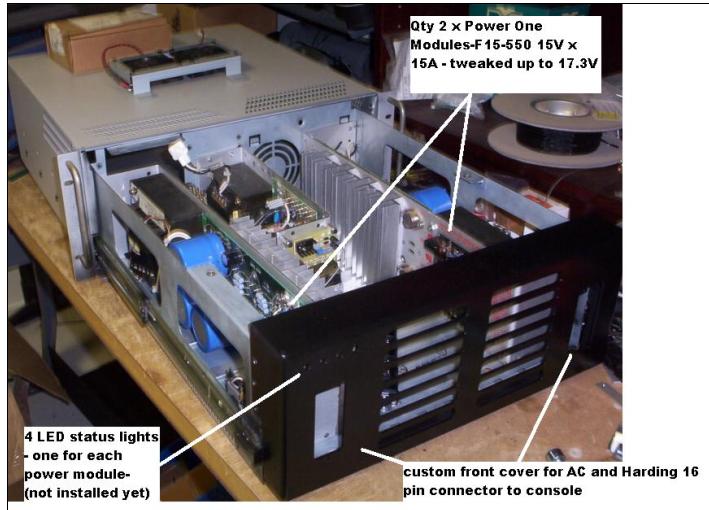

Hand Built Power Supply Unit for my AMEK Classic - nearly completed. needs wiring. all critical components are included

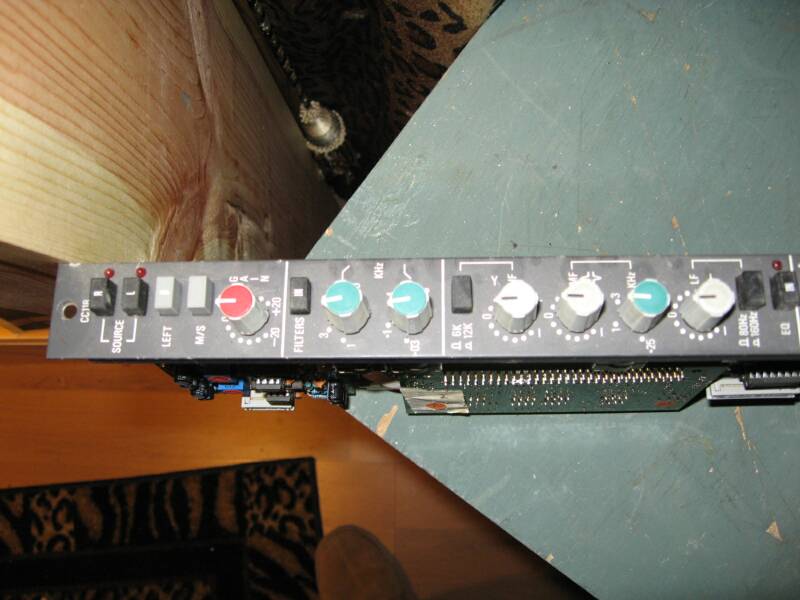

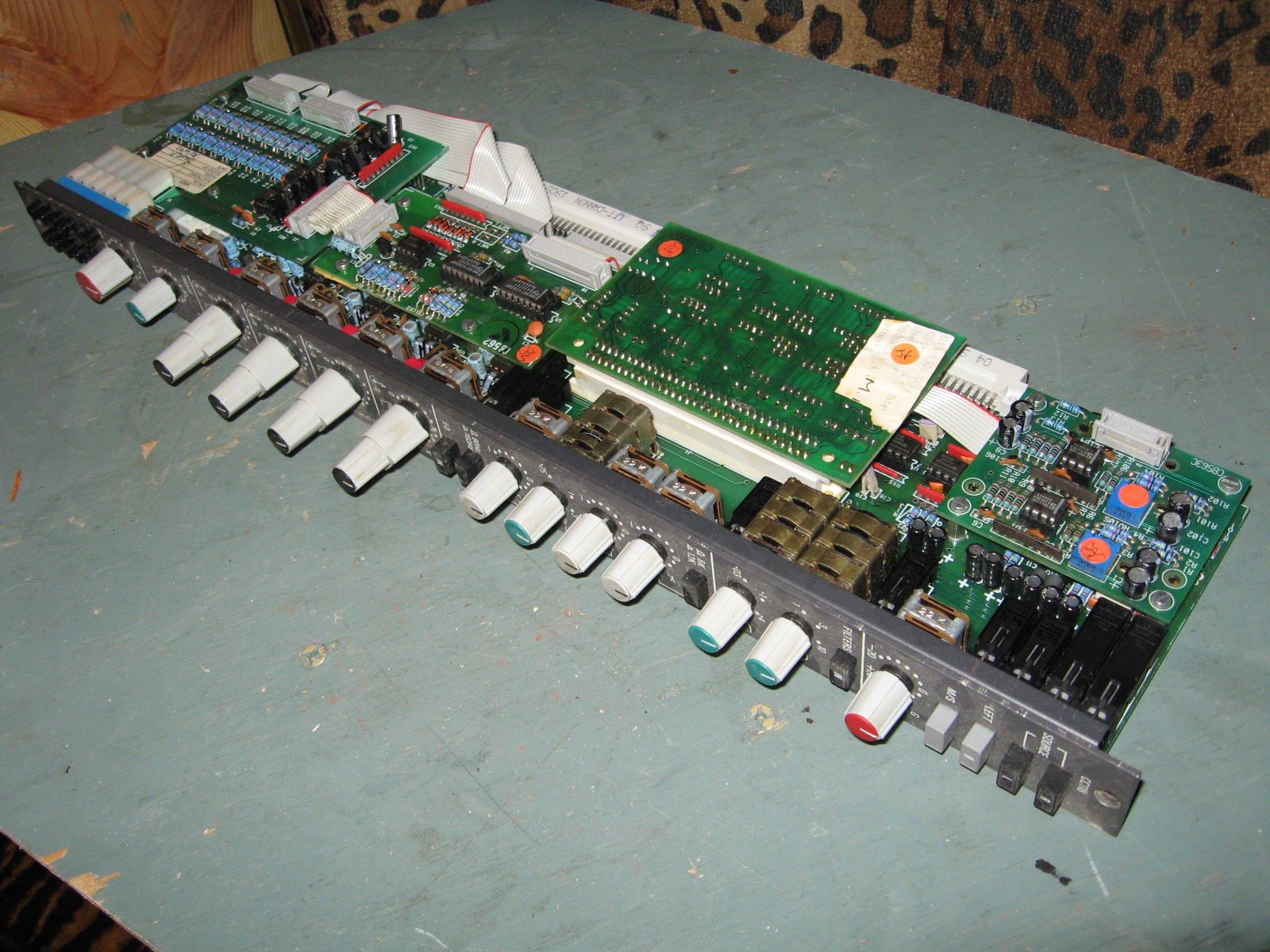

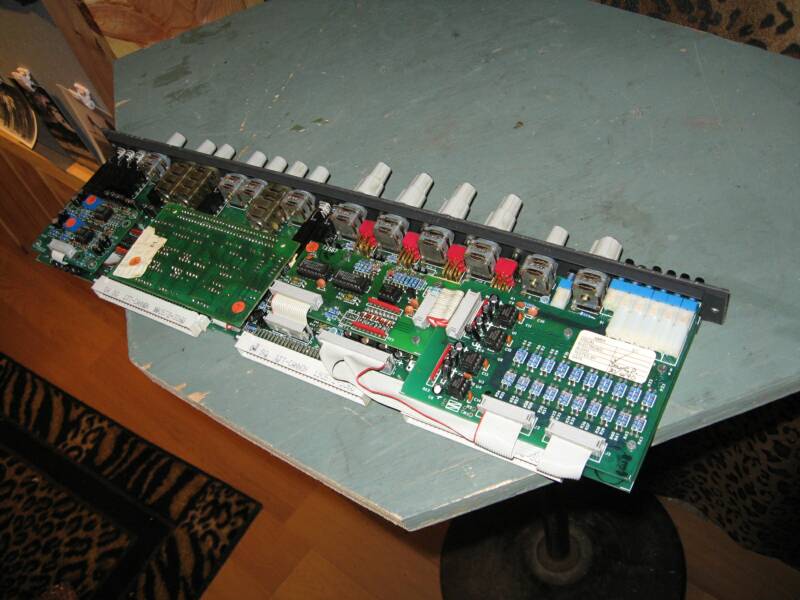

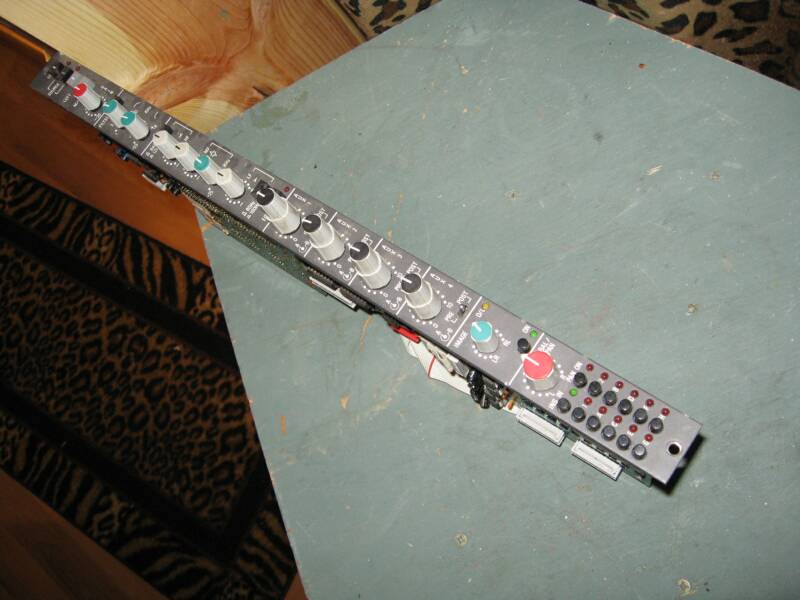

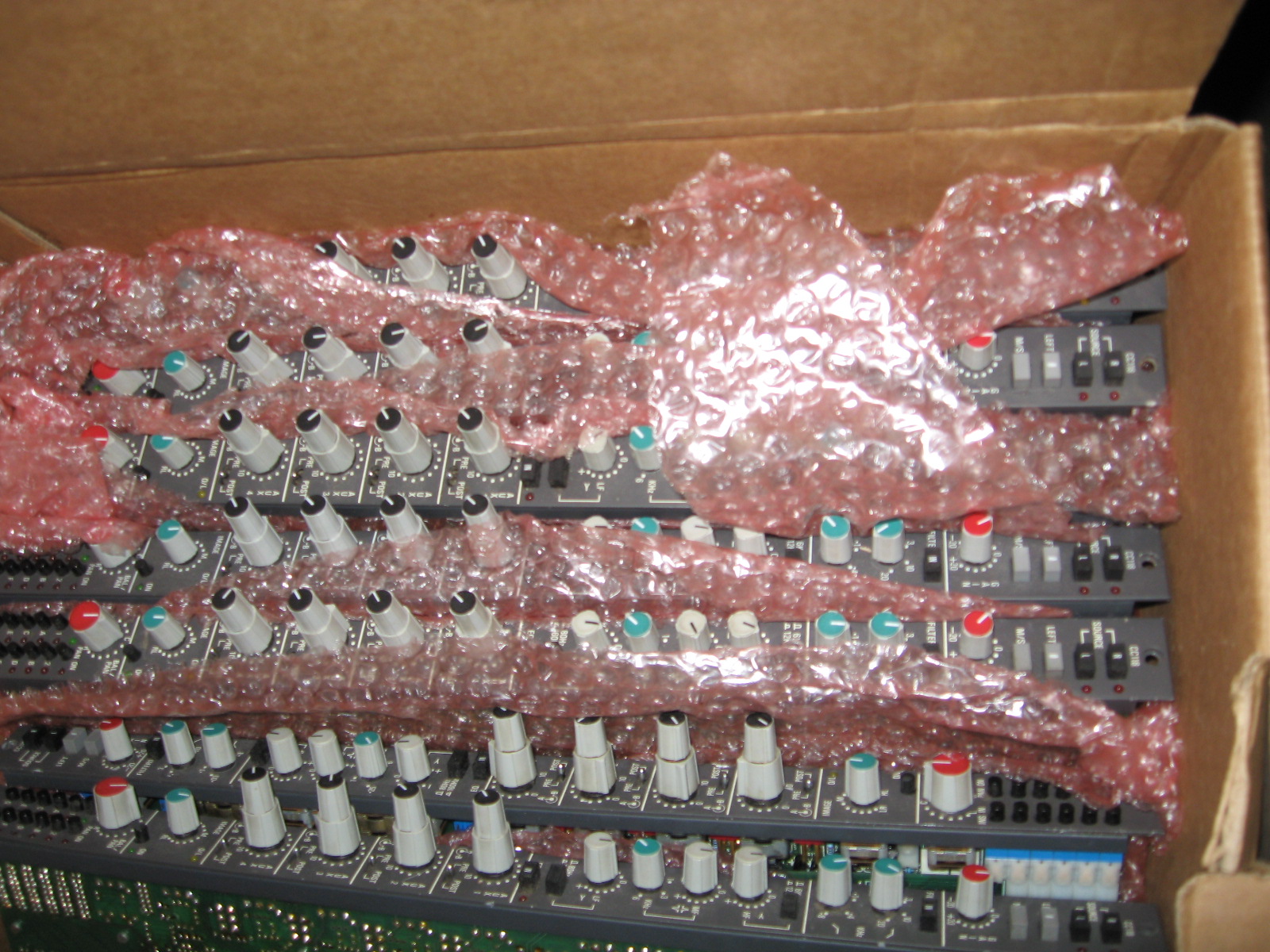

CC118 stereo Line In - EQ Module
CC125 Stereo 4 group sub-mix Module

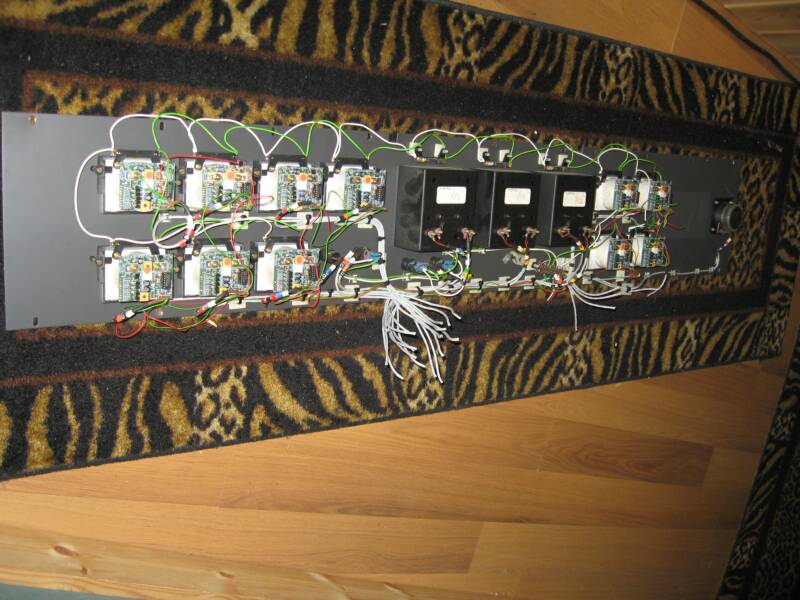

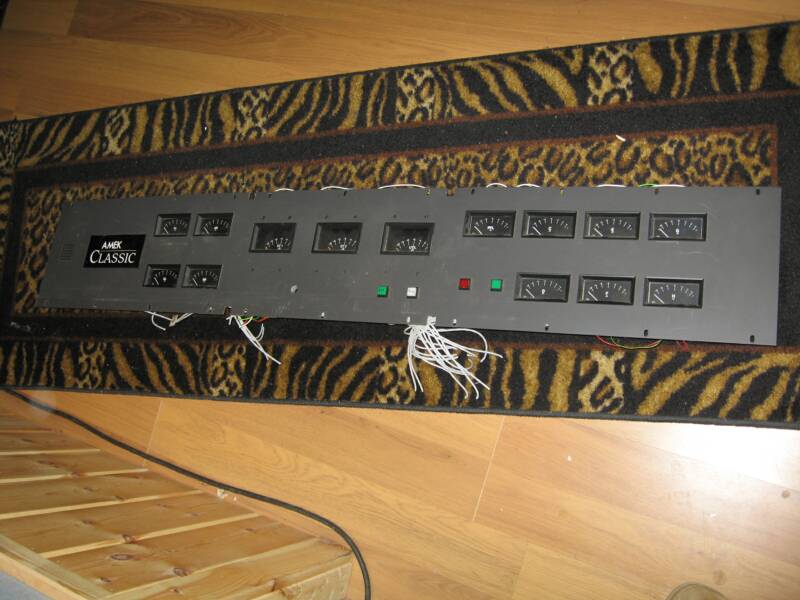

Complete meter panel with qty 3 large Sifam meters and qty 11 small Sifam meters
Speaker (?) and talk back mic - w/ all switches

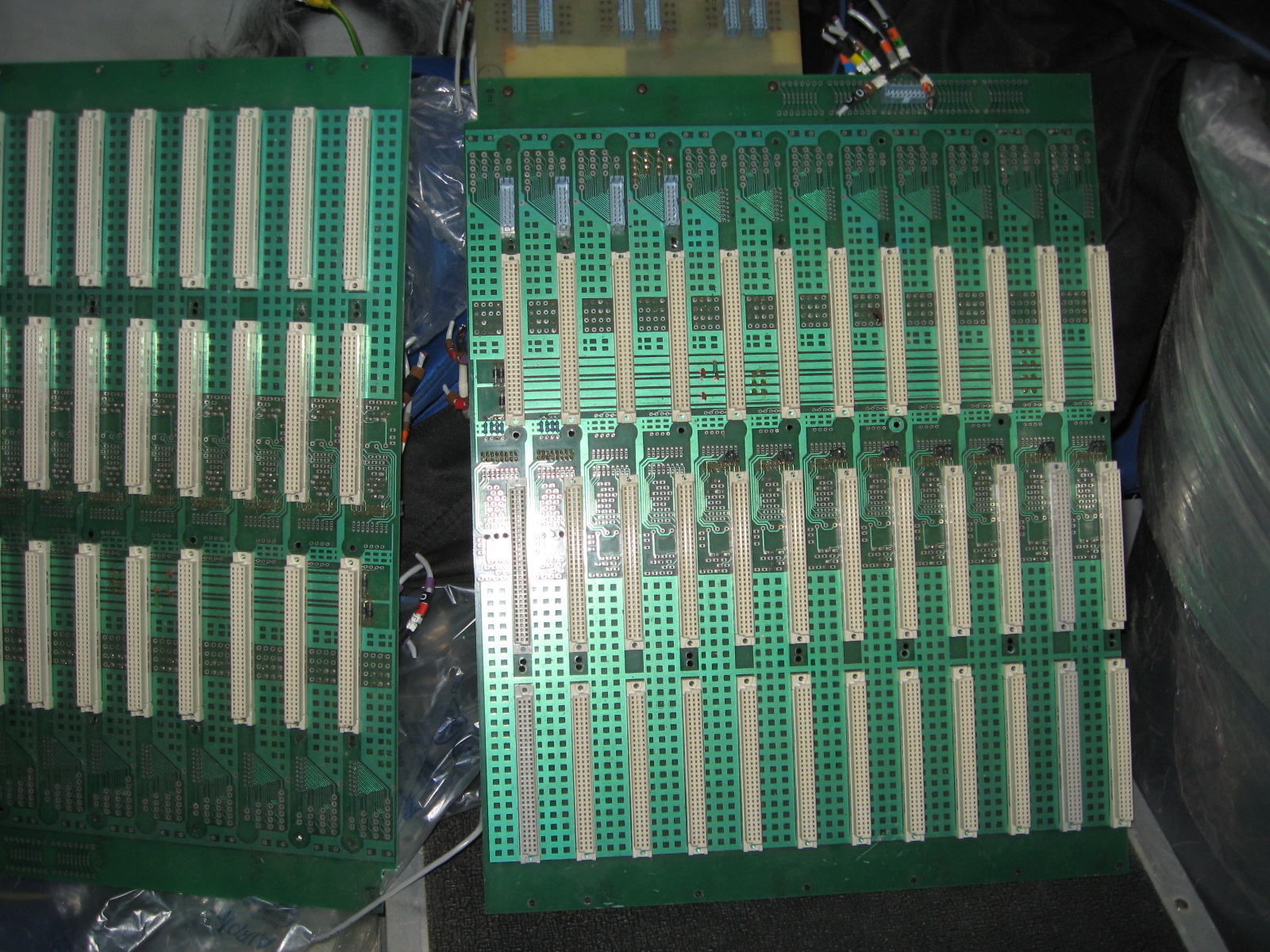

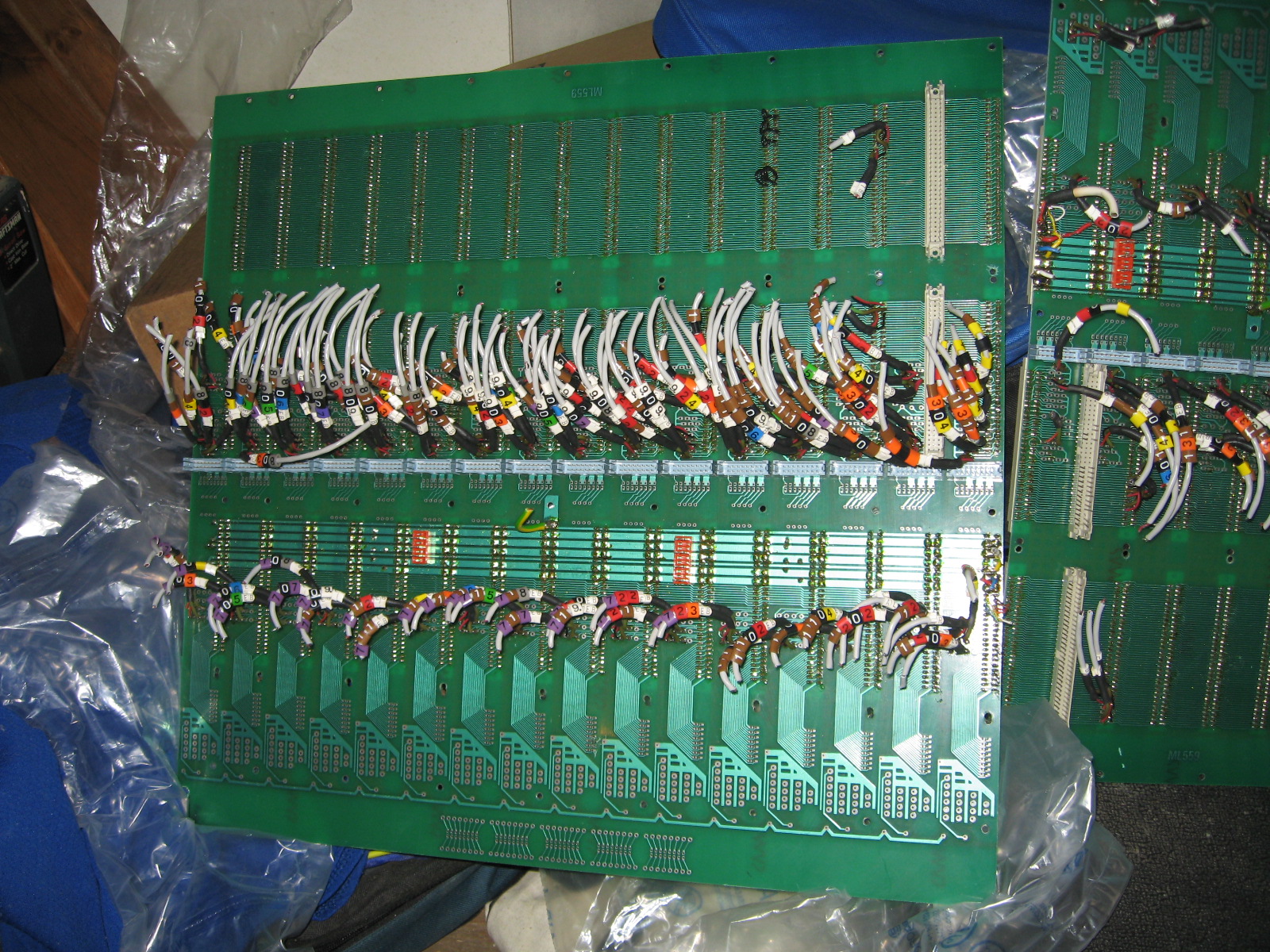

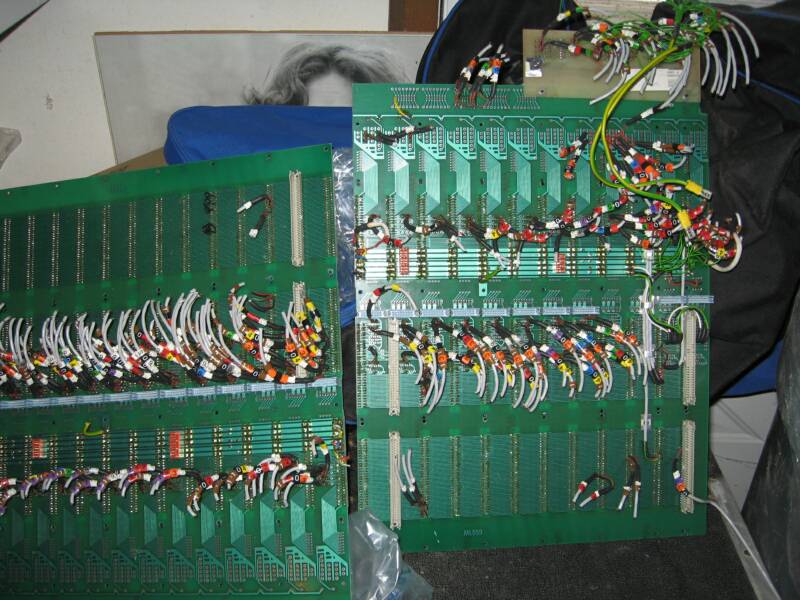

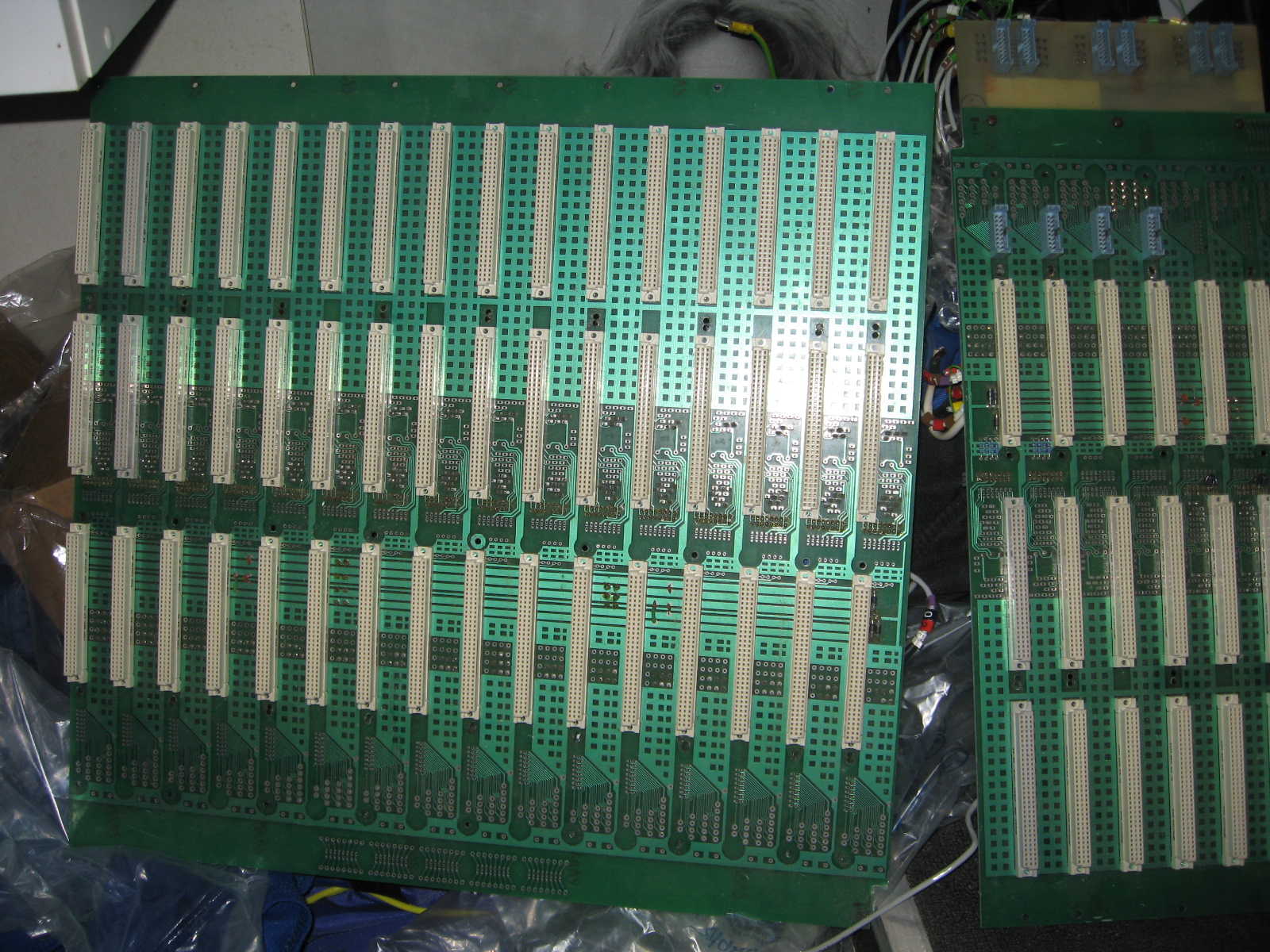

Mother boards qty 1 x 16channel I/O board and qty 1x 12 chanel Master section board
wiring was cut liberally with most of the original wire markers still in tact. I never touched these with a soldering iron.

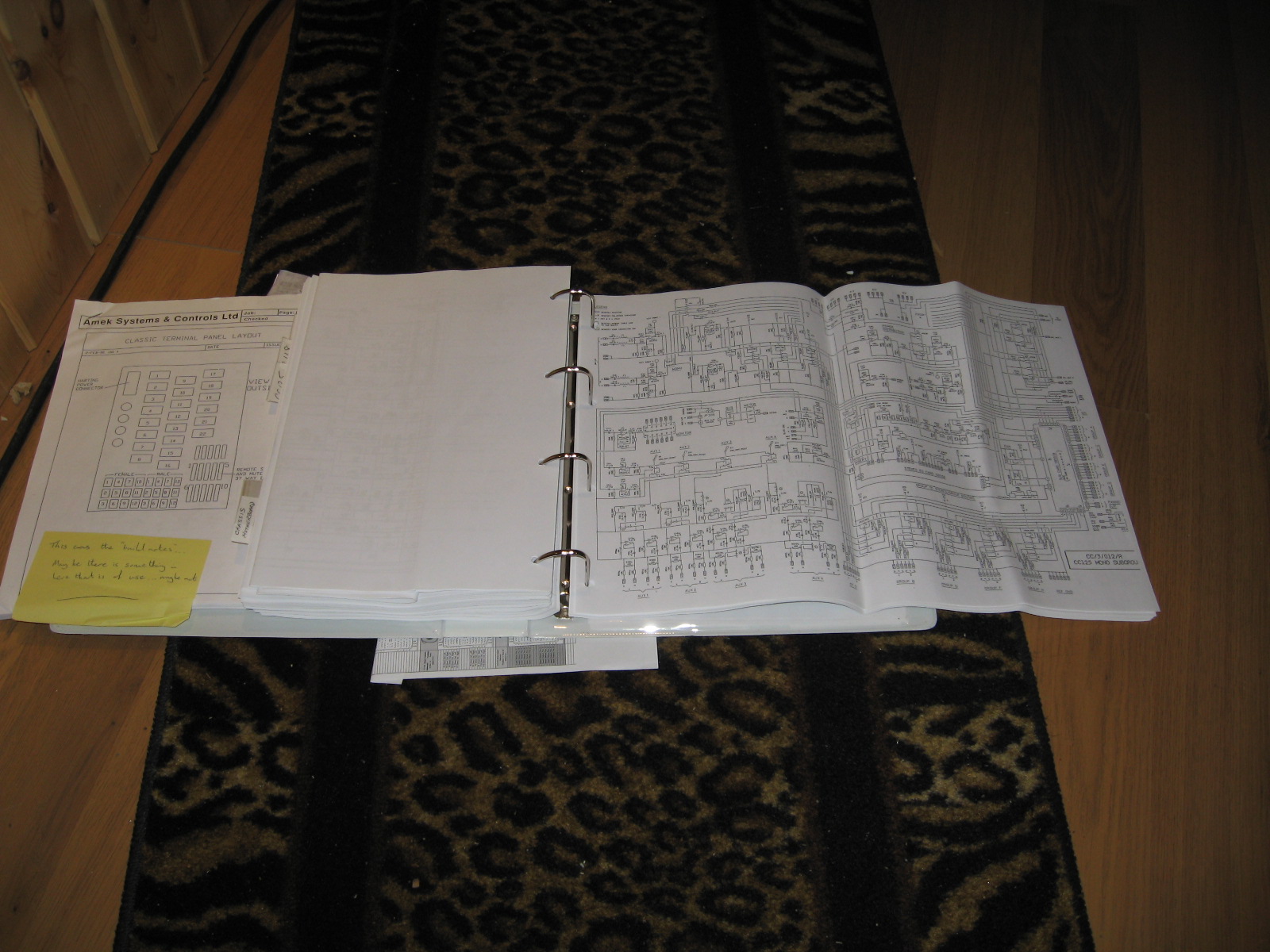

Amek Classic Technical Guide complete with schematics / PSU details and I/O wiring
(manual was purchased from AML - all pages are copies of the original documents but very legible - bound in a hard cover folder)
